Preamble

Amidst the rapid development of global technological innovations, male SMA connector plays a key role in wireless communications, aerospace, medical equipment and RF applications due to its high frequency performance and stable connection. The demand for high quality RF connectors is increasing thanks to the proliferation of 5G, Internet of Things (IoT) and radar technologies. This article will introduce the benefits, applications, troubleshooting and cleaning methods of male SMA connector to help readers understand its core value in modern technology and provide practical advice on selection and application.

〈Extended Reading：The Ultimate Guide to SMA Plug Connector Types and Specifications 〉

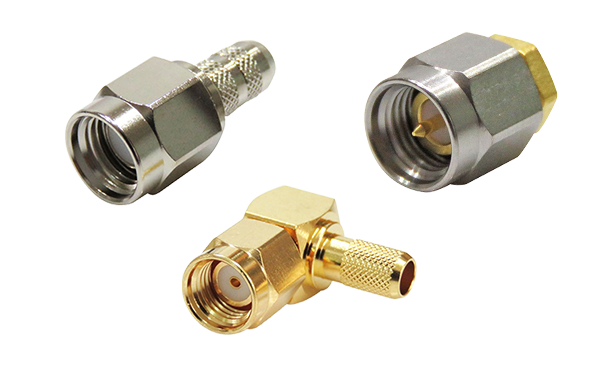

Advantages of the Male SMA Connector

The advantages of the male SMA connector include excellent high frequency performance, low insertion loss and high stability, as well as high connection reliability. Please refer to the description below.

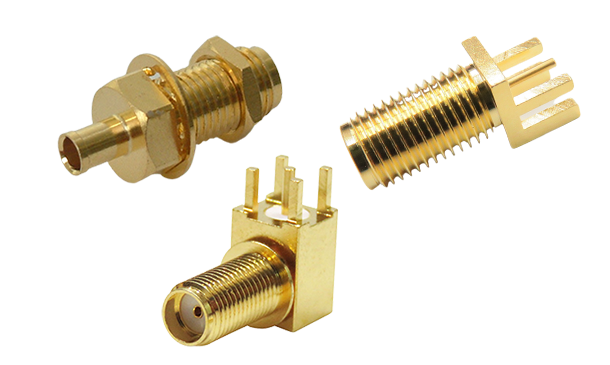

〈Extended Reading：High Performance Female SMA Connector: What You Need to Know! 〉



Excellent Performance of High frequency

Designed for high frequency applications, the male SMA connector could support frequencies from DC to 18 GHz and beyond, making it ideal for RF communications and microwave equipment.



Low Insertion Loss and High Stability

The male SMA connector's precision mechanical design and high quality materials ensure low insertion loss, minimize signal degradation, and provide stable performance during frequency changes.



High Connection Reliability

Utilizing a threaded connection mechanism, the male SMA connector provides a strong connection that prevents signal interruption and maintains excellent performance in vibrating environments or over long periods of time.



Suitable for a Wide Range of Applications

The male SMA connector is widely used in 5G equipment, wireless communication, radar system, test equipment, satellite communication and medical equipment to meet diversified needs.

〈Extended Reading：What is 5G Millimeter Wave? Key Differences and Features Over Regular 5G 〉



Durability and Environmental Resistance

Made of high strength materials such as brass or stainless steel, male SMA connector has good corrosion resistance and mechanical strength, and could be used for a long time in harsh environments.



Compatibility and Standardization

The male SMA connector meets international standards and is compatible with many of the SMA type connectors on the market, allowing for easy system integration and upgrades.



Male SMA Connector in Different Applications

The male SMA connector plays an important state in RF and microwave communications, ensuring the smooth transmission of signals between different devices, and are widely used in the following industries:

〈Extended Reading：SMA to K Connector Explained as the Key RF Component for High Frequency Technology 〉



Wireless Communication and Network Equipment

The male SMA connector is widely used in 5G base stations, Wi-Fi routers, and cellular network equipment to ensure the stability of high frequency signal transmission and enhance network performance.



Aerospace and Military Equipment

The male SMA connector is able to handle extreme environments and high frequency signaling requirements due to its high durability and low loss characteristics in military and aerospace applications such as radar systems, satellite communications, and unmanned aerial vehicles (UAVs).



Medical Equipment

Many high frequency medical imaging devices (e.g., MRI, ultrasound equipment), ECG monitors, and wireless medical sensors rely on the male SMA connector to ensure accurate data transmission and enhance the accuracy of medical diagnosis.



Internet of Things (IoT) and Smart Devices

The male SMA connector ensures stable RF communication to support long distance data transmission and device interconnection in applications such as smart home, wireless sensor networks, and Industrial Internet of Things (IoT).

〈Extended Reading：Microwave Communication: The Core Technology of Modern Technology and the Key Role of RF Connectors 〉



Automotive Electronics and Intelligent Transportation

The Male SMA Connector is responsible for the stable transmission of high frequency signals in these systems to ensure the accuracy of navigation and communication for vehicles with GPS antennas, ADAS (Advanced Driver Assistance Systems), in-vehicle wireless communications and other technologies.



Test and Measurement Equipment

The male SMA connector provides low loss and accurate signal transmission to ensure reliable measurement results in professional test equipment such as RF testers, spectrum analyzers, and signal generators.



Possible Issues with the Male SMA Connector

The most common issues with the male SMA connector such as signal loss, loose connection, impedance mismatch, etc., are recommended to be solved as follows.

〈Extended Reading：SSMP Adapters: Key Functions, Types, Advantages, and Applications 〉



Signal Loss (Insertion Loss)

Problem Cause:

Due to the quality of the material in the male SMA connector. Poor contact or wear caused by prolonged use, it may increase insertion loss and cause signal degradation.



Solution:

1. Use high quality male SMA connector to ensure good material conductivity.

2. Inspect and clean the contact surfaces of the male SMA connector time by time to avoid oxidation or dirt affecting the signal transmission.

3. Select RF cables of appropriate length to match the frequency range to minimize transmission losses.



Loose Connection

Problem Cause:

Frequent plugging and unplugging, vibration environment, or failure to properly tighten the male SMA connector threads may cause the connection to become loose, affecting signal stability.



Solution:

1. Ensure that the threaded portion of the Male SMA Connector is fully locked to avoid poor contact.

2. The connection may be strengthened by using screw retainers or retaining clamps in high vibration environments.

3. Avoid frequent plugging and unplugging to prolong the life of Male SMA Connector.



Impedance Mismatch

Problem Cause:

The male SMA connector has a standard impedance of 50Ω. Connecting it to a 75Ω system or other mismatched cables or devices may cause signal reflections (elevated VSWR), which may affect system performance.



Solution:

1. Ensure that all equipment (connectors, cables, antennas, etc.) meet the same impedance specifications.

2. Use the matching network to minimize the impact of mismatches.

3. Test the VSWR or TDR with a network analyzer to verify that the male SMA connector is not experiencing an impedance mismatch.

〈Extended Reading：Get to Know Multi-Functional of BMAM RF Connectors 〉



Poor Contact or Oxidation

Problem Cause:

The male SMA connector may be contaminated or oxidized at the contact points after prolonged use, resulting in an unstable signal.



Solution:

1. Periodically inspect and clean the surface of the male SMA connector with a dust free cloth and isopropyl alcohol to remove dust and oil.

2. Using male SMA connector with gold-plated connectors reduces the risk of oxidation and improves durability.

3. Avoid storing in a humid environment and use a moisture-proof box or desiccant to store the connector if necessary.



Over-Torque Damage

Problem Cause:

The male SMA connector threads are designed to require proper torque (usually 0.8~1.1 Nm), and over-tightening may result in thread damage or deformation of the internal center pin.



Solution:

1. Use the appropriate torque wrench to tighten the SMA connector to avoid excessive manual force.

2. If the connector is damaged, replace it with a new male SMA connector to ensure good measurement quality.



Corrosion and Cleaning of SMA Plug Connector

The male SMA connectors are primarily made of brass gold plated or stainless steel, although they are highly resistant to corrosion, their performance may deteriorate due to environmental factors. Common causes of corrosion include:

〈Extended Reading：SSMP Connectors: Specifications, Advantages, and Types 〉



1. Moisture and Oxidation

• In high humidity environments, the metal surface of the male SMA connector may oxidize, reducing conductivity and affecting signal transmission.

• Prolonged exposure to humid air may result in the formation of a green patina, affecting contact quality.



2. Chemical Impacts

• Prolonged exposure to airborne salt (e.g. seaside environments) accelerates corrosion of the metal surface of the male SMA connector.

• Acidic or alkaline gases (e.g. sulfides, ammonia) in the industrial environment can react with the plating and cause discoloration or deterioration of the surface.



3. Dust and Oil Buildup

• If the male SMA connector has not been cleaned for a long period of time, dust and oil may accumulate, affecting the conductivity of the contact surface and increasing signal loss.

〈Extended Reading：What is mmWave? Advantages, Disadvantages and Applications! 〉



Cleaning and Maintenance of SMA Connectors

Daily Cleaning

Use isopropyl alcohol (IPA) or anhydrous alcohol:

• Using a dust-free cloth or cotton swab moistened with isopropyl alcohol, gently wipe the contact surfaces of the male SMA connector to remove dirt and grease.

• Keep dry after cleaning to avoid alcohol residue affecting conductivity.



Compressed air cleaning:

• Use an oil-free compressed air spray gun or air canister to remove dust and fine particles from the inside of the male SMA connector to avoid poor contact.

• Avoid excessive air pressure to refrain damage to the internal structure.



Remove Oxidized Layer and Patina

Super fine metal polishing cloth:

• If slight oxidation occurs on the contact surface, the oxidized layer can be removed by gently wiping with an ultra-fine abrasive cloth (e.g., 2000 grit or higher sandpaper).

• Avoid over-grinding, which may damage the male SMA connector plating.



Trace contact cleaner:

• Use a professional electronic contact cleaner (such as DeoxIT) to dissolve the oxide layer and restore the good electrical conductivity of the male SMA connector.

• Spray and let sit for a few seconds, then wipe clean with a dust free cloth.

〈Extended Reading：What is high frequency? High Frequency Features and Applications!〉



Preventing Corrosion and Prolonging Service Life

Keep dry for storage:

• Avoid storing the male SMA connector in a humid environment, use a moisture-proof box or desiccant to minimize the effects of moisture.

• The stainless steel male SMA connector is available for improved corrosion resistance in extreme environments.



Use protective coatings:

• Applying a thin layer of petroleum jelly to the surface of the connector can effectively block air and moisture to reduce the risk of oxidation.

• Avoid frequently used to prevent signal transmission.



Avoid frequent plugging and unplugging:

• The male SMA connector usually has a limited number of insertions and removals (about 500), and overuse may cause wear on the contact surfaces and affect the signal quality.

• In applications that require frequent disassembly, it is recommended to use a quick release male SMA connector to minimize physical wear and tear.

〈Extended Reading：Microwave Technology Principles and Applications 〉



Male SMA Connector Manufacturer-Huang Liang Technologies Co., LTD.

In the RF connector market, Huang Liang Technologies has become a reliable supplier of male SMA connector with excellent quality and innovative technology. Its products are widely used in wireless communication, aerospace and military, medical equipment, Internet of Things (IoT) as well as automotive electronics, etc. With high precision manufacturing and stable performance, it has won the recognition of customers worldwide.

〈Extended Reading：5 Minute Guide to Understanding the Uses and Applications of SMA Adapters 〉



1. Excellent Performance of High Frequency Products

The male SMA connector of Huang Liang Technologies supports DC up to 18GHz (26.5GHz for part of products) to ensure stable signal transmission for high frequency applications such as 5G communications, radar systems and test equipment.



2. Low Loss and High Stability

The products are made of high quality gold plated brass or stainless steel with low insertion loss and high return loss to minimize signal degradation also ensure long distance transmission stability.



3. Precision Manufacturing and Strict Quality Control

Produced with high precision CNC machining technology, each male SMA connector is rigorously tested to ensure impedance accuracy up to 50Ω, reducing signal reflection and interference  caused by impedance mismatch.

〈Extended Reading：Explore Microwave Frequency and Their Applications in RF Microwave Connectors 〉



4. Rugged and Durable for Harsh Environments



5. Diversified Choices and Customized Service

• A variety of male SMA connector types are available, including straight, right angle, flange, and PCB soldered to meet different application requirements.

• We can provide customized design and OEM service according to customers' needs, and flexibly respond to specific equipment and industry.



6. International Standards

The male SMA connector of Huang Liang Technologies complies with international standards such as IEC, MIL-STD, RoHS, etc. to ensure the product quality and environmental protection requirements, and has been adopted by lot of well-known companies around the world.



Conclusion

The male SMA connector is a high frequency RF connector plays a key role in wireless communication, aerospace and military, medical equipment, Internet of Things and automotive electronics. Choosing a high quality male SMA connector not only ensures the stability of signal transmission, but also improves the overall performance and durability of the equipment.

We are a professional RF microwave connector manufacturer with many years of technical experience and excellent quality. Huang Liang Technologies offers a wide range of male SMA connector and other RF solutions along with international standards to meet the needs of various applications. Whether it is a standard product or a customized product, we can provide the most suitable solution. If you are interested in the male SMA connector or other RF connectors, please contact us for more product information and technical support!
