RF engineers often face a balancing act between physical space constraints and signal integrity in pursuit of smaller devices and high-performance transmission nowadays. Right angle SMA connectors play an indispensable role in modern communication equipment as a solution that combines mechanical convenience with stable electrical performance. This article will take you on an in-depth exploration of their design objectives, core advantages, and key applications across various industries.

What are Right Angle SMA Connectors?

A right angle SMA connector is a design that redirects the signal transmission path of a standard SMA coaxial connector from a straight line to a 90 degree angle. It retains the fundamental characteristics of the SMA (50 Ω impedance, threaded locking mechanism, and high frequency capability), but through the geometric design of its internal conductors and dielectric, it allows the RF signal to make the 90 degree turn within the connector itself.
This type of right angle SMA connector is commonly found in below.

• PCB-mounted (Right Angle PCB Mount)
• Cable ends (Right Angle Cable Plug)
• Bulkhead (Bulkhead Right Angle)

The core of its design lies in solving routing challenges under space constraints. Although the 90 degree bend inside the right angle SMA poses a challenge to RF signal transmission, through modern precision machining and compensatory design. High quality right angle SMA connectors can still maintain a characteristic impedance of 50 ohm and perform stably in the high frequency range of several GHz.
〈Related Articles：SMA Connectors - The Most Common RF Connectors〉

Features and Advantages of Right Angle SMA Connectors

Why use a right angle SMA connector instead of simply bending the cable? The main reasons are as follows.

1. Low Profile Design: This is the most obvious advantage. It allows the right angle SMA connector to exit the cable in a direction parallel to the PCB, significantly reducing the overall height and installation depth of the equipment and maximizing space utilization.
2. Strain Relief: Forcing a coaxial cable to bend in a confined space can damage the shielding or cause the center conductor to shift, resulting in signal leakage. The right angle design of SMA connector provides a built-in physical bend, effectively protecting the cable from excessive mechanical stress.
3. High Mechanical Durability: The right angle SMA connectors feature a threaded locking mechanism (1/4"-36 UNS), providing excellent resistance to vibration and impact, making it particularly suitable for equipment in mobile or high vibration environments.
4. Optimized Cabling Path: Behind cabinets or test benches, right angle SMA connectors allow cables to run flush against the panel, keeping the rear of the equipment tidy and preventing cable clutter and tangling.

〈Related Articles：How to Choose the Right RF Adapter? Specifications, Applications, and Selection Guide〉

Which devices require Right Angle SMA connectors?

1. 5G and Communication Base Stations: In high-density MIMO antenna systems, where a large number of connection points must be configured within a very small space, right angle connectors are the standard components for achieving compact cabling.
2. Internet of Things (IoT) and Embedded Devices: Small gateways or smart home monitoring devices are often constrained by enclosure thickness and must use low-profile right angle SMA connectors.
3. Aerospace and Defense: Unmanned Aerial Vehicles (UAVs), satellite communication terminals, and radar systems have extremely limited space for internal electronic modules and require the highest levels of mechanical stability.
4. Precision Test Equipment: Handheld spectrum analyzers or network analyzers often utilize right angle SMA connectors to optimize connector placement within the human-machine interface.

Which devices require Right Angle SMA connectors?How to Select the Right Right Angle SMA Connectors?

When selecting right angle SMA connectors, we should not focus solely on appearance that evaluation must be based on the following key specifications.

1. PCB Mounting Type: Select through hole, surface mount, or edge mount based on the PCB design.
2. Performance Specifications: Pay attention to VSWR and Insertion Loss. Right angle SMA connectors typically perform slightly worse than straight connectors at high frequencies (e.g., 12 GHz and above) verify that they meet the system’s bandwidth requirements.
3. Material and Plating: The center conductor typically requires gold plating to ensure minimal contact resistance and oxidation resistance. The housing should be selected as stainless steel or nickel plated brass depending on environmental requirements.

Recommended Right Angle SMA Connectors from Huang Liang Technologies

Right Angle SMA connectors have become critical components in modern wireless communications, test equipment, and 5G technology due to their compact size, high-frequency performance, reliability, durability, and broad compatibility. Huang Liang Technologies possesses in-house R&D capabilities and CST electrical simulation software, enabling us to provide customized Right Angle SMA connectors for different application requirements.

When selecting a supplier for Right Angle SMA connectors, factors such as quality certifications, product specifications, supply stability, and technical support should be comprehensively considered. Huang Liang Technologies operates a large fleet of CNC machining equipment capable of meeting the precise tolerance requirements of high-frequency connectors, while also providing fast delivery, technical support, and comprehensive after-sales service.

〈Recommended Product〉

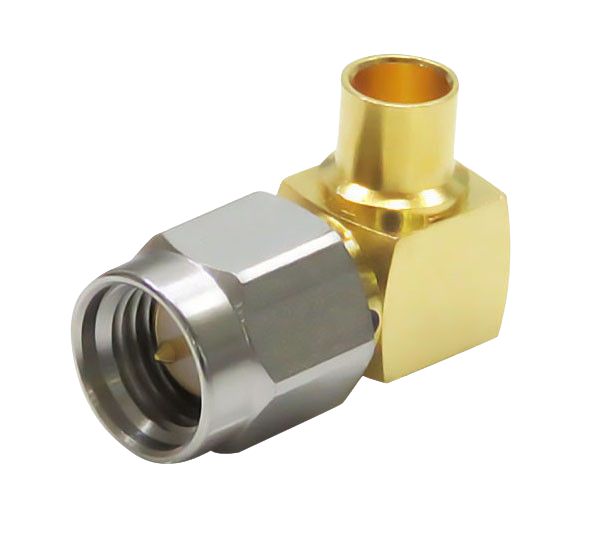

• SMA R/A PLUG CONNECTOR SOLDER FOR .086/.085 SEMI RIGID CABLE
• SMA R/A PLUG TO JACK ADAPTER
• SMA RADIUS R/A JACK CONNECTOR CLAMP FOR .141 SEMI RIGID CABLE
• SMA RADIUS R/A PLUG CONNECTOR CLAMP FOR .085 SEMI RIGID CABLE
• SMA JACK RADIUS R/A 4-HOLE FLANGE MOUNT FIELD REPLACEABLE FOR ACCEPTS Ø.036 PIN
• SMA R/A PLUG TO PLUG ADAPTER

Conclusion

The Right Angle SMA connector is an RF solution designed for space constraints and mechanical integration requirements. Its main advantages include reducing overall system height, minimizing cable stress, and improving flexibility in cabling and equipment integration. However, due to its internal 90-degree signal path, high-frequency performance and manufacturing complexity must also be taken into consideration. Therefore, the following principles can be used when selecting a connector:

1. Space constraints → Choose Right Angle
2. Performance Priority (Especially at high frequencies) → Prioritize Straight

Although Straight connectors generally offer advantages in applications where high-frequency performance, such as 12 GHz and above, is particularly important, high-quality Right Angle SMA connectors can still maintain stable performance in most RF systems through precision machining, impedance compensation, and proper PCB routing design. This makes them particularly suitable for applications with limited equipment space or where cable routing needs to be optimized. Huang Liang Technologies offers a wide range of Right Angle SMA products. If you have specific specifications or application requirements, please feel free to contact us for more information.
