SMA connectors are a widely used connector for wireless communication and RF applications. These connectors derive their name from their design: Sub Miniature Version A.

What is SMA Connector？

SMA connectors (Sub Miniature Version A) are a common type of RF connector used in wireless communications and RF applications. They provide a reliable connection for transmitting RF signals with application frequencies from DC 26.5 GHz.

< Extended reading:What are RF/Microwave Connectors? >

The SMA connector works

A SMA (Sub Miniature Version A) connector is a radio frequency (RF) connector whose operating principle is based on the transmission and connection of RF signals. The following is a basic overview of how SMA connectors work:

 Shell and internal structure

The SMA connector consists of a shell and an internal structure. The housing is usually made of metal and is threaded to securely fasten the connector to other equipment or connectors. The internal structure consists of a center pin and corresponding contact points.

 Center pin

The part of the SMA connector that is used to transmit the RF signal, the SMA connector has a center pin (which looks like a small post against the header) that can be inserted into a mating female connector. This design makes the SMA connectors easier to install and remove, as they do not require precise alignment, and their shape helps to provide good mechanical retention and good guidance. The design of the male connector also helps to minimize insertion loss and improve connection stability.

<Extended reading: Mastering 2.4mm Connectors and Adapters: Applications, Specifications, and Selection Guide>

Threaded connection

The SMA connector's housing has threads, usually standard threaded connections. These threads are used to tighten the connector to other equipment or connectors to ensure a strong connection and good signal transmission.

Anti-interference and matching

The design of SMA connector considers the anti-interference and matching performance of RF signal. Good matching can reduce signal reflection and loss, thus improving signal transmission efficiency. At the same time, the casing and structure of the SMA connector can also provide a certain degree of shielding to minimize the impact of external interference on the signal.

SMA connectors ensure reliable transmission of RF signals and good connection through their structural design and material selection. They are widely used in various fields of radio communication, RF test and measurement, and antenna systems, etc.

<Extended reading: Get to Know Multi-Functional of BMAM RF Connectors>

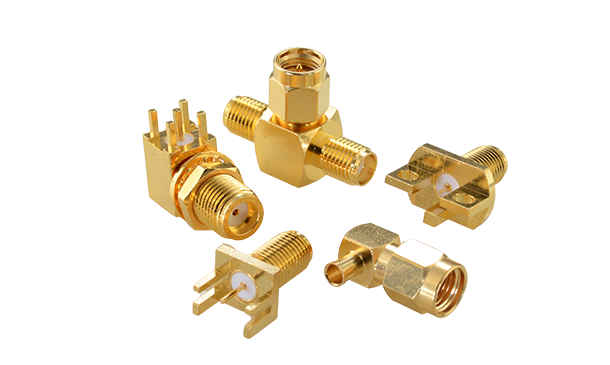

SMA connector series introduction

The SMA series is used from DC~26.5GHz making it ideal for high frequency applications such as wireless communications, radar and microwave applications. SMA connectors typically have very low loss, typically 0.2 dB insertion loss and 0.15 dB reflection loss. This makes them very popular in high-frequency applications because they provide minimal signal attenuation.

There are several different models and types, each with specific features and applications. Below is a list of common SMA series and their features:

SMA standard model

This is the most common SMA connector model, and its housing and internal structure conform to the SMA standard specifications. These connectors are commonly used in various RF applications to provide reliable connections and good signaling performance.

<Recommended Products: SMA ST. PLUG TO JACK ADAPTER(101-A025/111)>

RP SMA reverse polarity

RP stands for Reverse Polarity. In this type of SMA connector, the center pin and housing are reversed from the standard SMA. This design is used to prevent unauthorized use of the device and to increase the security of the system.

<Recommended Products: SMA ST. PLUG TO RPSMA JACK ADAPTER(132-A020/111) >

SMA edge mount

This type of SMA connector is designed to be mounted directly to the edge of the printed circuit board, which is useful when designing space-constrained applications.

<Recommended Products: SMA ST. JACK CONNECTOR PCB END LAUNCH FOR Ø.020 POST CONTACT(CPW/MICROSTRIP)(130-F635/111) >

The advantages and disadvantages of SMA Connectors

Advantages

Reliability

The SMA connector's sturdy structure provides a reliable connection that is not easily loosened, thus ensuring stable signal transmission.

Wide application

SMA connectors are widely used in wireless communication, RF test, antenna system and other fields, suitable for all kinds of RF application scenarios.

Stable performance

SMA connectors are stable in high frequency and RF applications, providing good signal transmission performance and matching characteristics.

Standardizedy

SMA connectors conform to standardized specifications, which are easy to obtain and use, as well as have good interchangeability.

Easy to install

The SMA connector is relatively easy to install, usually only need to screw the connector into the corresponding interface to complete the connection.

<Extended reading: Understanding Hermetic Sealing Technology and Hermetic Connectors in RF Applications>

Disadvantages

Size limitation

SMA connectors are large in size and are not suitable for miniaturized designs in particular.


Frequency limitations

Although SMA connectors can be used for relatively high frequency applications, they are limited in higher frequency (above 26.5GHz) applications.

Impedance matching

SMA connectors need to ensure impedance matching between the device and the SMA connector, otherwise signal reflection and loss may result.

<Extended reading: SSMP Connectors: Specifications, Advantages, and Types>

Conclusion

The selection of SMA series connectors depends on specific application requirements, such as frequency range, impedance matching and mounting method. Regardless of the application, SMA connectors provide reliable connection and excellent RF performance, so they are widely used in the field of RF engineering. Huang Liang Technologies is a professional manufacturer of RF microwave connectors, offering a wide range of SMA series with professional extension design, for more diversified applications. Please feel free to contact usfor more details.
