Preface

SSMP connectors are known as Sub Super Miniature Push-on connector. The demand for data transmission rate is constantly growing with the continuous development of science and technology. High speed and stable data transmission has become very important whether in high performance computing environments or personal consumer electronics. SSMP connectors have been developed to provide a reliable solution for high frequency and high density connection applications.

What are SSMP Connectors?

SSMP connectors are small radio frequency (RF) connectors designed for the transmission of high frequency signals. The small size, light weight and high performance of these connectors make them suitable for applications that require compact design and efficient transmission. SSMP connectors are widely used in communication equipment, test and measurement instruments, satellite communications, and military electronic equipment.

SSMP Connectors Key Features:

SSMP connectors, with a variety of superior features that make them excellent for high frequency applications. The following are the main features of the SSMP connectors:

1. Miniaturized design: SSMP connectors are small and lightweight, suitable for applications that require a compact design. Such as portable devices and high-density connection environments. Reducing the internal space occupied by the equipment facilitates layout and design.

2. High Frequency Performance: SSMP connectors have a frequency range of DC~65 GHz. It is suitable for various high frequency applications. Low insertion loss ensures signal integrity and strength. It is good for precision RF signal transmission.

3. Push-on design: SSMP connectors use a push-on mechanism that allows for quick plugging and unplugging without the need for threaded locks. That is very convenient in applications that require frequent connecting and disconnecting.

4. Accurate alignment: High-precision mechanical design ensures accurate alignment of the SSMP connectors during the connection process, providing stable electrical performance and mechanical connection, reducing signal loss and the risk of connection failure.

5. Wide range of applications: SSMP connectors could be used in communication equipment, test and measurement instruments, satellite communications, military electronics equipment and high-performance computing, etc. SSMP connectors could provide a reliable solution in a variety of scenarios requiring high-frequency and high-performance connectivity,

The above features give SSMP connectors a significant advantage in high-frequency data transmission, making them ideal for modern RF communications and high-performance computing.

Main Specification of SSMP Connectors:

SSMP connectors are available in a variety of specifications to meet the needs of different applications. The following describes the main specifications of the SSMP connectors:

1. Frequency range: DC~65 GHz
2. Impedance: 50 ohm (Ω)
3. Insertion loss: ≦0.3 dB
4. VSWR: ≦1.35
5. Plugging life:
   ≧100(FULL DETENT)
   ≧250 (LIMIT DETENT)
   ≧500 (SMOOTH BORE and CATCHER'S MITT)
 6. Material: The body is usually used stainless steel, gold-plated brass or gold-plated beryllium copper. Most of the insulating material is used TEFLON.

The advantages and disadvantages of SSMP Connectors

Advantages of SSMP Connectors:

1. Small size: The small size of the SSMP connectors make it suitable for space-constrained applications.

2. Excellent high frequency performance: SSMP connectors could support high frequency (DC-65GHz) signal transmission.

3. Easy to operate: The push-on design of the SSMP connectors make plugging and unplugging easy and quick.

4. High density connections: The small size of the SSMP connectors allow more connectors to be used in a limited space.


Disadvantages of SSMP Connectors:

1. Higher cost: The cost of SSMP connectors is relatively high due to the use of precision machining and high quality materials.

2. High demands on the use environment: Additional protection may be required in extreme environments.

3. Limited number of insertions and withdrawals: Despite a certain mechanical life, frequent insertions and withdrawals lead to wear and tear.

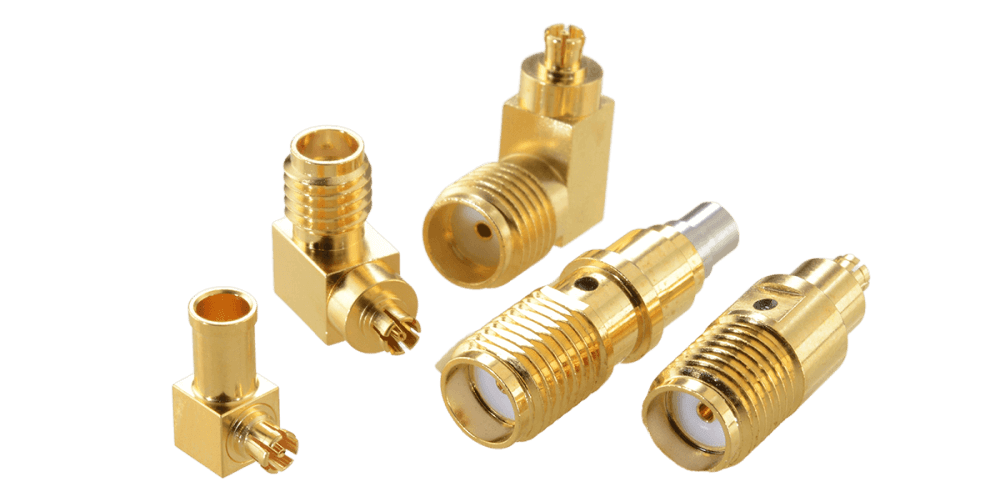

Product Introduction of SSMP Connectors

SSMP connectors are available in a wide range of components to meet the needs of different applications. The following describes each component and its application:

1. Straight Plug: Straight plugs are typically used for board-to-board connections. They are inserted directly into the interface of the device for applications that require a direct connection. Such as connections on printed circuit boards.

Recommended Products>> 159-M63P/118(SF162)

2. Straight Jack: Straight Jack connector is used to connect with straight connector. It is suitable for connecting equipment that accepts board-to-board connectors.

Recommended Products>> 159-A01E/111

3. Right Angle Jack: A right angle jack connector is used to form a connection with equipment that requires angular turning or has restricted access.

Recommended Products>> 159-F08M/111

4. Cable Assemblies: Cable assemblies connect connectors to cables or wires for making connections and transmitting signals for applications that require the connection of different devices or components.

Recommended Products>> 159-F08M/111

5. Adapters: Adapters are used to convert different types or sizes of connectors to realize different equipment or components. The connection is suitable for applications of different standards or interfaces, providing interconnectivity and compatibility.

Recommended Products>> 159-A035/119

The component of SSMP connectors are available in different forms and functions to meet the demands of a wide range of application scenarios and provide flexible connection solutions.

Conclusion

SSMP connectors are features of small size, excellent high-frequency performance and convenient push-on design which act as a key component in high-frequency applications. They are widely used in telecom, military, aerospace, aeronautics, medical and high-frequency test instruments. Despite its relatively high cost and high environmental requirements, its excellent performance and ease of operation make it an ideal choice for demanding applications. Further, it is widely used in the field of RF engineering. Huang Liang Technologies is a professional manufacturer of RF microwave connectors, offering a wide range of SSMP series with professional extensions or special requirement designs. Please feel free to Contact Us for more details of SSMP connectors.
