Get to Know Multi-Functional of BMAM RF Connectors

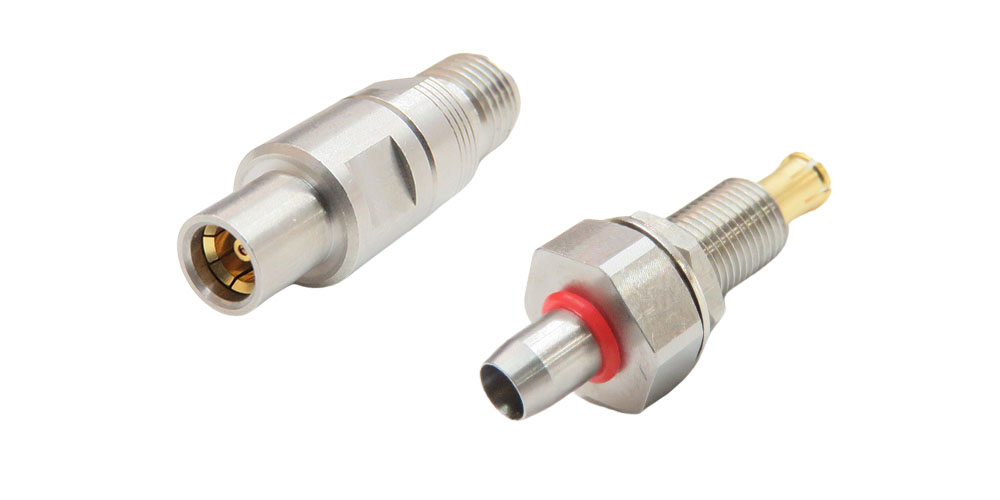

The BMAM RF microwave connector series is an easy-to-use slide-on/push-on connector with 50 Ohm impedance characteristics for high frequency microwave frequency applications up to 28 GHz. The BMAM RF microwave connector is a compact connector designed for space-saving, high-precision, and blind-plugging operation. The BMAM product line will be used in a wide range of high tech electronic devices such as aerospace, medical devices, military and consumer electronics.

BMAM RF microwave connectors are available in two design variations for use in mechanical joint design either a fixed design or a floating design. The floating variant provides tolerances for axial or radial misalignment, making it ideal for high vibration applications. The spring mechanism separates the connector interface from the plate housing (flange housing) and allows floating for blind-mate design functionality, hence BMAM is also known as a Micro Miniature Blind-Mate Connector.
<Products Recommendation : BMAM PLUG TO SMP JACK SPRING LOAD ST. ADAPTER 79N-A020/118>

Design Advantages, Applications and Future Development Potential of BMAM RF Microwave Connectors

Item	Description
Product Design Advantages	BMAM is miniaturized, small and lightweight, suitable for space-constrained applications Supports high-frequency transmission with a frequency range of up to 28 GHz or higher Blind mating mechanism allows for unseen and accurate mating, reducing operation difficulty and time
Applications	Wireless Communication : For 5G base stations, Wi-Fi devices, mobile devices Measurement Equipment : RF test equipment, laboratory test systems Aerospace Applications : Aircraft communications, satellite communications, drones Military Applications : Military communications, radar systems, radios
Strengths	High-frequency performance: Supports high-frequency signal transmission with low loss and high return loss, suitable for high-frequency applications Durability and Reliability : Stable operation in harsh environments, suitable for military and aerospace applications Convenience : Blind-mating feature for easy installation and removal, enhancing operational efficiency
Future Development Potential	Driven by 5G/6G Technology : With the rapid development of wireless communication technology. BMAM connectors will become a key component in the demand for high-frequency and low-latency Growing Demand for Miniaturization and Light Weighting : The growing demand for smart devices, drones, and other products will drive the further miniaturization and light weighting of connectors, and BMAM will be more suitable for use in such end-products

Introduction to BMAM connector

BMAM connector is a high performance RF connector that can be used either directly or with RF components. Explanation of component interconnections and introduction of BMAM connector qualities, characteristics, etc. BMAM RF microwave connectors are high performance connectors with high frequency performance, low loss, and excellent shielding performance. It is suitable for a variety of demanding RF applications. Whether used directly in RF equipment or as an interconnection tool between RF modules, it provides stable and reliable RF signal transmission. Meanwhile, the blind mate design of BMAM RF microwave connectors greatly improves the ease of installation as well as maintenance, and will remain important in various high-tech applications in the future.

BMAM RF Microwave Connectors Characteristics and Application Notes

Characterization	Description	Applications
High Performance RF Connectivity	Supports high-frequency transmission for RF signals up to 28 GHz Low insertion loss and high return loss to ensure signal stability and minimize signal loss	5G Communication System High Frequency Test Equipment Microwave Communication
Direct Use	Directly connects to antennas, amplifiers, filters, etc. Provides stable RF signal transmission	Wireless Communication Equipment Radar Module Satellite Communication
Interconnection of Components	Supports compatibility between multiple RF components such as antennas, amplifiers, and receiver modules Provides low-loss, stable signal paths for efficient transmission	RF Module Systems Drone Communication Modules Industrial Automation Controls
Blind Mate Design Mechanism	Supports blind mating, eliminating the need for precise alignment and making it ideal for applications with limited or restricted space Reduces installation time and improves work efficiency	Military Communication Equipment Industrial Automation Equipment Aerospace Equipment

The selection of materials for BMAM RF microwave connectors is based on light weight, high strength and excellent electrical conductivity. Commonly used materials include copper alloys, stainless steel and high performance plastics. The combination of these materials ensures that BMAM RF microwave connectors maintain consistent performance in service.

Commonly Used Materials and Characteristics of BMAM RF Microwave Connectors

Material	Characterization	Advantages and Applications
Copper Alloy	Excellent electrical and thermal conductivity Good mechanical strength and ductility	For connectors that require high electrical conductivity and heat dissipation, such as base stations
Stainless Steel	High strength and corrosion resistance Resistant to environmental factors such as humidity and chemicals	Suitable for harsh environments, such as aerospace, military, marine equipment, etc.
High Performance Plastics	Lightweight and insulated Resistant to high temperatures and chemical corrosion, providing mechanical stability	Commonly used in high-temperature environments or in applications where weight reduction is required, such as aerospace and portable equipment

Introduces the basic specifications of the BMAM connector, including frequency range, impedance, power, and insertion loss, description of environmental tolerance, etc. BMAM RF microwave connectors offer high frequency range, high accuracy, low insertion loss, excellent environmental durability and stable RF performance. These specifications make BMAM products suitable for use in high-frequency, high-reliability applications such as communications, aerospace, military, test and measurement.

Basic Specifications for BMAM RF Microwave Connectors

Basic Specification	Description
Frequency Range	Supports transmissions up to 28 GHz or higher for high frequency applications and millimeter wave technology
Impedance	Standard impedance of 50 ohms (Ω) ensures signal matching in high-frequency applications and reduces reflective losses
Power Handling Capability	Withstands high power signals, with typical power ranging from a few watts to several hundred watts, depending on the application scenario
Insertion Loss	Low insertion loss, typically between 0.1 and 0.5 dB, ensures that signal loss is minimized during transmission
Echo Loss	High return loss, typically greater than 20 dB, ensures that reflected signals are minimized and signal quality is enhanced
Operating Temperature Range	Standard operating temperature range of -55°C to +125°C for extreme temperature environments
Vibration and Impact Resistance	Withstands vibration and shock up to 20g, suitable for high vibration environments
Corrosion Resistance	Highly corrosion-resistant materials, such as stainless steel or nickel-plated treatment, are used to maintain long-term stability in humid or chemical environments
Defense Level	IP67 or higher protection for special needs, waterproof and dustproof, suitable for outdoor harsh environments
Connection Life	Supporting up to 500+ connections, BMAM RF microwave connectors are ideal for frequent plugging and unplugging needs

BMAM RF microwave connectors are known for their superior high-frequency performance, durability and reliability, ease of installation and use, and broad compatibility. These advantages make them ideal connection solutions for modern communications, aerospace, military, test equipment and other high-performance applications.

Advantages of BMAM RF Microwave Connectors

Type of Advantage	Description
High Frequency Performance	Supports frequency ranges up to 28 GHz or higher Low insertion loss and high return loss for signal stability and efficiency
Durability and Reliability	Highly durable materials for stable operation in extreme environments Resistant to corrosion and abrasion, high vibration and high temperature environments
Ease of installation and Use	Ease of installation and Use Blind mating design allows accurate mating within floating tolerances Fast mating and unplugging reduces handling time and complexity
Compatibility	Supports standard 50 ohm impedance and is compatible with most 50 ohm impedance RF systems

How to choose BMAM connector

BMAM RF microwave connectors need to be selected correctly and appropriately according to the specific needs of the actual application. Taking into account the usage environment, frequency range, power requirements, compatibility with existing equipment, and connection methods to ensure the stability and reliability of the system.

The Choose Considerations of BMAM RF Microwave Connector

Consideration	Description	Consideration of Key Points
Environment	Recognize the environmental conditions of the connector, including temperature range, humidity, corrosion, vibration, etc. Select materials and designs that are suitable for these conditions	High temperature, low temperature, humid environment Military or aerospace applications
Frequency Range and Power Requirements	Recognize the frequency range requirements to ensure that the band is supported Evaluate the power requirements and select a connector that can handle the corresponding power	Frequency Range for 5G Communications High Power RF Transmission
Compatibility of Existing Equipment	Ensure that the impedance of the connector (typically 50 Ω) matches that of the existing equipment Check that the connection mechanism is adapted to the equipment interface	RF Module Communication Base Station
Connections	Evaluate the plugging and unplugging requirements of the connection, in particular the suitability of the blind plug design/Recognize the ease of installation and maintenance	Frequent plugging and unplugging requirements Devices that require precise mating

BMAM RF microwave connectors are available in a variety of models and specifications, depending on their use and end application. We would like to introduce some BMAM RF microwave adapters developed and produced by Huang Liang Technologies.
<Products Recommendation : 1560BMAM ST. JACK TO K JACK ADAPTER 79N-A060/188>

Application Areas of BMAM Connectors

BMAM RF microwave connectors play an important role in wireless communication, measurement equipment, aerospace and military fields due to their high frequency performance, miniaturized design and reliable blind mating mechanism. Whether for 5G base stations, satellite communications, military radars or laboratory test systems, they provide excellent connectivity and an efficient user experience.

The main areas of BMAM RF Microwave Connectors and the Specific Application scenarios

Application Scenarios	Benefits and Requirements
5G Communications Base Station	Supports high-frequency signal transmission up to 28 GHz Low insertion loss, high return loss Adapts to space-constrained environments in base stations
Mobile Devices and Internet of Things	Compact design for portable devices and IoT terminals Lightweight and supports high-frequency signals
RF Test Equipment	Supports high-precision RF signal measurement with low loss High repeatability for frequent plugging and unplugging requirements
Laboratory Test System	Blind-mate design for fast connection and disconnection to enhance testing efficiency deal for frequent plugging and unplugging requirements
Aircraft Communication and Navigation Systems	High-frequency performance, lightweight design Shock and vibration resistant, fits into tight spaces inside the airplane
Satellite Communication System	Supports Ka-band (approx. 28 GHz) Capable of operating in extreme environments
UAV Systems	Extremely lightweight design for small drones High-frequency performance for narrow space applications
Military Communication System	Shock and vibration resistant, suitable for harsh environments Stable high-frequency signal transmission, suitable for mobile devices
Radar System	Supports high-frequency signals Low insertion loss, capable of handling high power signals
Radio and Electronic Warfare Equipment	Highly resistant to interference and suitable for battlefield environments Highly durable and able to withstand high vibration conditions

Conclusion

BMAM RF microwave connectors are key components in a variety of fields due to their superior high-frequency performance, durability, blind-mate design and ease of installation. They have demonstrated excellent performance in the fast-growing field of wireless communications, as well as in measurement equipment, aerospace and military applications where precision and durability are critical. With the advancement of technology and the growing demand for higher frequency and smaller designs, BMAM RF microwave connectors will be used in a wider range of applications and play an even more important role in various fields in the future. Huang Liang Technologies can provide different types of BMAM RF microwave connectors and adapters, as well as a variety of series and professional extension design. If you would like to know more about the products, please feel free to Contact Us .
