Preamble

Radio Frequency (RF) technology is playing an increasingly important role in the rapid development of modern technology, especially in the areas of wireless communica-tions, high speed data transmission and wireless sensing. For these applications, adapters are critical components that reacted for connecting different RF components together to ensure stable signal transmission and high quality communication. Sub-Super Miniature Push-on Adapters (SSMP adapters) are an important component in high frequency miniature applications also be used in many applications where minia-turization is required.

<Extended reading: What are RF/Microwave Connectors?>

SSMP Adapters Features

SSMP adapters are characterized by their miniaturization, high frequency performance and reliability. They are usually extremely small in size and can realize high frequency signal transmission in limited space. At the same time, they are often plugged in and plugged out in a push-on design, which makes installation and replacement more convenient and faster. These features give SSMP adapters a unique advantage in a va-riety of high frequency miniature applications, making them the preferred choice of many RF engineers and designers.

<Extended reading: What is high frequency? High Frequency Features and Applications!>

SSMP Adapters Applications

SSMP adapters are used in a wide range of applications, mainly focusing on various high frequency RF applications, such as miniature antenna systems, small base station, wireless sensors, and high speed data communications. According to their miniature design and excellent high frequency characteristics. SSMP adapters play a key role in these applications and provide important support for system performance.

SSMP Adapters Advantages

Compared to the other miniature adapters, the advantages of SSMP adapters are their higher frequency range and smaller size. This makes them the connection solution of choice for many miniature RF applications. In addition, SSMP adapters are widely rec-ognized for their reliability and stability, which allows them to maintain good perfor-mance in several environmental conditions.

Key Features of SSMP Adapters

The SSMP adapters have many of superior features that caused them by an excellent performer in high frequency applications. The following are the main features of SSMP adapters:

Compact Size

• Extremely compact design for space constrained applications.
• The miniature size enables high density configurations.

Push-to-Connect Mechanism

• Push-to-connect mechanism simplifies the connection and disconnection process.
• No threaded connection is required, which saves operating time and enhances ease of use.

Superior High Frequency Performance

• Provides excellent performance in the high frequency range, typically up to the millimeter wave band.
• Low insertion loss and high return loss ensure signal integrity and stability.

Versatile Applications

• Suitable for RF and microwave systems in areas such as telecommunications, military, aerospace and medical equipment.
• Commonly used in high-frequency test and measurement systems for a wide range of high frequency applications.

<Extended reading: Microwave Technology Principles and Applications>

High Durability

• Designed to withstand multiple connections and disconnections without significant performance degradation.
• They are usually made of durable materials such as stainless steel to ensure long life and reliability

Strong Compatibility

• Compatible with other types of connectors via an adapter.
• The versatile design makes it useful in a wide range of applications.

<Extended reading: SSMP Connectors: Specifications, Advantages, and Types>

Standard Impedance

• Typically designed with an impedance of 50 ohms, they are suitable for a wide range of RF applications.
• Ensure compatibility with other RF systems and equipment.

Precision Manufacturing

• Precision manufacturing processes ensure consistent high performance.
• High quality manufacturing standards ensure product consistency and reliability.

These features make the SSMP adapters very popular in applications that require small size, high performance, and convenient connectivity.

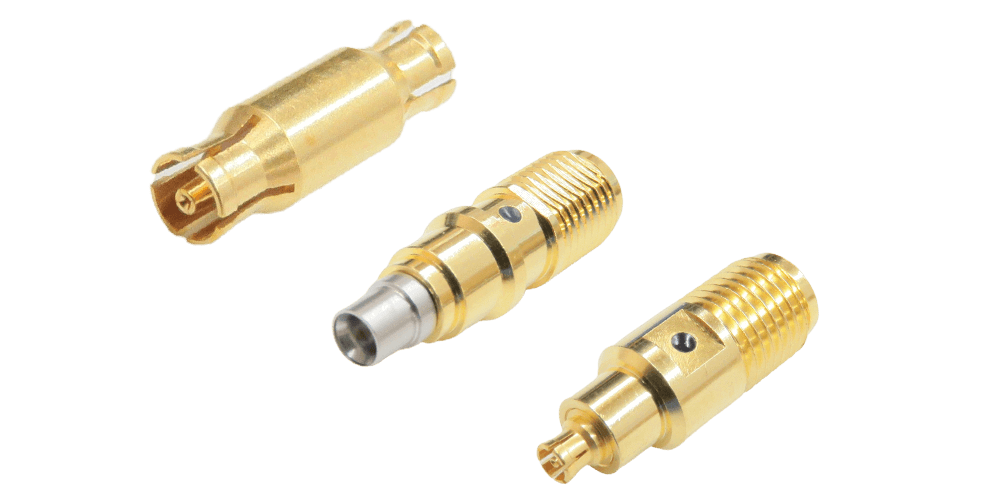

Different Types of SSMP Adapters

Connectors usually need to be adapted to other connectors in order to interconnect with different devices or systems. The following are some common SSMP adapters:

SSMP to SMA Adapter

Converts the interface from SSMP to SMA. This is used in RF test and measurement applications. The adapters are applied for the connection of test equipment and measurement instruments.

<Extended reading: 5 Minute Guide to Understanding the Uses and Applications of SMA Adapters>

SSMP to SMB Adapter

Converts the interface from SSMP to SMB. This adapter is used in communication systems and microwave equipment to connect the intercon-nection between the interfaces of SSMP and SMB.

SSMP to MCX Adapter

Converts the interface from SSMP to MCX. This adapter is used in RF equipment and antenna systems to convert and interconnect.

SSMP to SMP Adapter

Converts the interface from SSMP to SMP. This adapter is used in microwave equipment and communication systems.

<Extended reading: SMP Spring Loaded Adapter>

SSMP to BNC Adapter

Converts the interface from SSMP to BNC. This adapter is used in test and measurement applications to convert and interconnect.

SSMP Adapters Maintenance Recommendations

Regular Cleaning

It is very important to clean the ports and contact points of the adapter on a regular basis. Use a clean, non-fiber cloth or cotton swab to gently wipe the inside and outside surfaces of the adapters to remove dust, dirt and oil.

Avoid Mechanical Damage

Avoid unnecessary mechanical damage such as excessive bending or twisting of adapters. Handle the adapter gently and avoid using excessive force or rough handling.

Proper Storage

When not in use, store the adaptor in a dry, clean environment protected from mechanical shock. It is best to store the adapters in a sealed bag to protect it from dust and moisture.

Avoid High Temperatures and Humidity

Avoid exposing the adapter to exces-sive temperatures or humidity, which may cause structural deformation or corro-sion of the adapters.

Periodic Inspection

Periodically inspect the appearance of the adapter and the condition of the connector connections. If any damage, corrosion or deformation is found, replace the adapter immediately.

Proper Use

Use the proper tools and methods to connect the adapters, avoid using excessive force or twisting the connector. Ensure that the center of the adapter is aligned to reduce the risk of damage and breakage.

Polarity

When connecting adapters, pay attention to the polarity to ensure proper alignment and insertion. Do not force incompatible adapters into each other to prevent damage.

Periodic Calibration

If using the SSMP adapter for testing and measurement, it is important to calibrate the equipment periodically to ensure accuracy and reliability.

Future Trends in SSMP adapters

Some future trends in SSMP adapters’ development:

Miniaturized Design

With the trend of miniaturization of electronic devices, SSMP adapters will move in the direction of miniaturization. Future SSMP adapt-ers will be lighter and smaller in size to meet the needs of various miniature RF systems and devices.

High Frequency Characteristics

As communication technology continues to evolve, the demand for high frequency characteristics will also continue to grow. Future SSMP adapters will have a wider operating frequency range, higher trans-mission frequency and lower insertion loss to achieve higher signal quality and performance.

Multifunctional Applications

Future SSMP adapters will be more multifunc-tional, able to realize the conversion and interconnection between different types and specifications. This will enable SSMP adapters to be used in a wide range of applications, such as communication systems, wireless sensing, testing and measurement, etc.

High Reliability and Durability

Future SSMP adapters will have higher reliability and durability, and will be able to work stably for a long time in harsh environ-ments. This will help to improve system stability and reliability, and reduce the number of failures and maintenance.

Integration and Automation

As communication technology continues to ad-vance, future SSMP adapters are likely to be more integrated into devices and sys-tems to reach higher levels of integration and automation. This will make SSMP adapters easier to use and manage, while also improving overall system perfor-mance and efficiency.

Conclusion

Future SSMP adapters will develop in the direction of miniaturization, high fre-quency, multi-functionality, high reliability and automation to meet the growing demand for communication as well as technology applications. Through contin-uous technological innovation and product optimization, SSMP adapters will continue to play an important role in driving the continuous progress and devel-opment of communication technology.

As a professional RF microwave connector manufacturer, Huang Liang Technolo-gies provides various SSMP series adapters, if you would like to know more about our products, please feel free to Contact Us.
