Preface

With the rapid development of modern technology, adapters are one of the key components in modern wireless communication and electronic equipment. Whether in laboratory test equipment, antenna systems, or wireless communication equipment, adapters are widely used. These small, high-frequency adapters have become the preferred choice in many professional fields because of their excellent performance and reliability. This article will provide you with a concise introduction to the basic concepts, common uses, and specific examples of SMA adapters in a variety of applications, allowing you to master the core knowledge of this critical electronic component in just five minutes.

<Extended reading: Get to Know Multi-Functional of BMAM RF Connectors>


What are SMA Adapters?

The SMA adapters are the devices for connecting two different types of SMA connectors. Its function is to allow connection between different models or types of equipment, thus extending the compatibility and application range of the equipment.

The main functions of the SMA adapter are as follows：

<Extended reading: What is high frequency? High Frequency Features and Applications!>


Connecting different models of SMA connectors

The SMA adapters are usually used to connect two different models of SMA connectors together, e.g. between SMA male and SMA female. This allows the SMA connectors of different devices to be used in conjunction with each other.


Extend device compatibility

Since different devices may use different types of SMA connectors. The use of SMA adapters extends the compatibility of devices, allowing them to connect more widely with other devices.


Provide convenient connection solutions

Simply and quickly solve compatibility issues between devices with different connectors.

<Extended reading: Mastering 2.4mm Connectors and Adapters: Applications, Specifications, and Selection Guide>

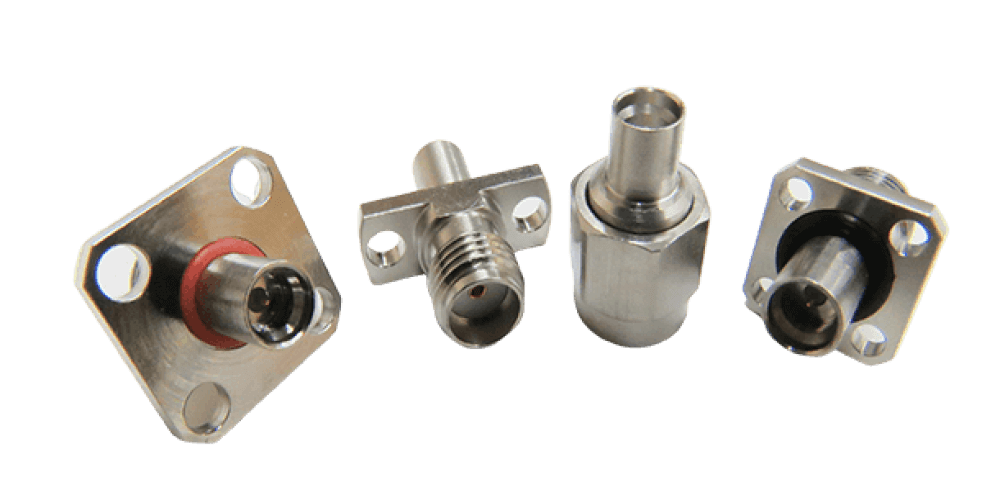

Different types of SMA adapters

SMA adapters are available in a variety of models and specifications, depending on their use and end application. We would like to introduce some of the more common adapters available on the market.


SMA Male to SMA Female Adapter

This adapter converts an SMA male connector to an SMA female connector, which is commonly used to establish connections between different types of equipment or components.

<Recommended Products : SMA ST. PLUG TO JACK ADAPTER (ADU1-SMM1-SMF1)>


SMA Male to N Male Adapter

This adapter converts the SMA male connector to N male connector, which is usually used to connect SMA devices to N type devices. Such as spectrum analyzers, small vector network analyzers and so on.

<Recommended Products : SMA ST. PLUG TO N PLUG ADAPTER (ADU1-SMM1-NM1)>


SMA R/A PLUG TO JACK ADAPTER

This adapter is a SMA male to SMA female converter, in which the one-piece right angle design could effectively minimize the bending effect on the electrical side. Thus, its electrical performance has been greatly improved. For the application aspect that could be used in a limited space.

<Recommended Products : SMA R/A PLUG TO JACK ADAPTER (101-R045/188)>


SMA ST. JACK TO JACK 4 HOLE FLANGE ADAPTER

This adapter is SMA female to SMA female, but the flange added could be fixed to the terminal equipment or PCB. It could be accurately aligned, and to ensure that long-term use will not be loosened or shifted due to external forces. It is suitable for use in vibration or impact environment.

<Recommended Products : SMA ST. JACK TO JACK 4 HOLE FLANGE ADAPTER (101-A616/133)>


SMA ST. JACK TO U.FL PLUG ADAPTER

This adapter for SMA female to U.FL male type. This U.FL interface is widely used in micro devices, and easy to install as well as interrupt the structure. The most suitable application would be for GPS, wireless LAN, mobile phone, etc.

<Recommended Products : SMA ST. JACK TO U.FL PLUG ADAPTER (101-A98A/133)>


Application of SMA adapters

RF test and measurement

In RF test and measurement instruments, the SMA adapters are used to connect equipment for frequency analysis, power measurement, etc. Used for connecting network analyzers, spectrum analyzers, signal generators and other equipment.


Aerospace and military applications

In aerospace and military communication systems, SMA adapters are commonly used to connect RF signal sources, antennas and radar systems. Applications in military communications, navigation and intelligence gathering systems.


Laboratories and research

SMA adapters are used to connect laboratory equipment, antennas and instruments in various scientific laboratories and research institutes. Used in antenna design, radar research and other fields.


Product development and testing

SMA adapters are used to connect devices, test equipment and measuring instruments during product development and testing. Used to test and verify the electrical performance of new products.

<Extended reading: Understanding Hermetic Sealing Technology and Hermetic Connectors in RF Applications>

How to choose SMA adapters?

Factors to consider when choosing an SMA adapter are listed below

<Extended reading: Microwave Technology Principles and Applications>


Connector gender and type

Determine the gender (male or female) and type (e.g., SMA Male, SMA Female) of connector required to ensure compatibility with the device or connector.


Frequency range

Ensure that the frequency range of the SMA adapter meets the requirements of the application or user to avoid signal attenuation or distortion due to frequency limitation.


Impedance matching

Ensure that the impedance of the SMA adapters (usually 50 ohms) match the impedance of the connected device or cable to minimize signal reflection and loss.


Material and Durability

Selection of high quality materials (e.g. brass or stainless steel) and durable construction ensures that the SMA adapters have good durability and long term reliability.


Environmental requirements

Considering the environmental conditions, such as temperature, humidity, and vibration, choose the SMA adapters with suitable waterproof, dustproof, and anti-disturbance performance.


Application requirements

According to the specific application requirements, choose the appropriate type and specifications of the SMA adapters, such as adapting different types of connectors, connecting to different frequency bands of devices, etc.

Taking all these factors into consideration could help determine the most suitable SMA adapters to meet the needs of a particular application and ensure good connection performance.

<Extended reading: SSMP Connectors: Specifications, Advantages, and Types>

Use and Maintaining SMA adapters

The use and maintenance of the SMA adapters are crucial to ensure their performance and life. In this article, we would like to provide the following suggestions for readers' reference.


Ensure correct connection

When connecting the SMA adapters, please make sure the male and female connectors are correctly aligned before gently tightening them. Use a torque wrench to tighten the connectors. Be careful not to overload the torque lever to avoid damaging the connector.


Careful use

Use the SMA adapters with care and avoid dropping them or subjecting them to shocks. It may deform or damage the adapters.


Check compatibility

Before using the SMA adapters, make sure that they are compatible with the equipment, cable or object to be tested that the user expects to connect.

<Extended reading: Explore BMA Connectors and Applications in Microwave Technology>


SMA adapter maintenance recommendations

Regular Inspection

Regularly inspect the SMA adapters for any signs of damage, such as large openings in the grooves, loose components, and other abnormalities, which may cause the quality of the electrics to deteriorate or become inaccurate.


Keep clean

In order to avoid degradation of signal quality and connection problems, please keep the SMA adapters clean. It is recommended to use a soft brush to remove dust, dirt, and debris, and store it in a clean and dry environment. In order to protect them from damage caused by external impacts and external environmental influences.


Use a protective sleeve

When the SMA adapters are not in use, put on the connector sleeve to cover the connector to protect them from dust, moisture, or damage. This helps to maintain the integrity of the adapters during storage.

Following the above use and maintenance recommendations will ensure accurate measurements and a longer service life. It would minimize the risk of signal loss or connection problems.

<Extended reading: SSMP Adapters: Key Functions, Types, Advantages, and Applications>


Conclusion

SMA adapters are widely used in communication and wireless technology and provide flexible connections for different types of equipment, making it easier and more convenient to connect devices or objects to be tested. They play an important role in a variety of applications in different fields and provide users with more flexible options. As a professional RF microwave connector manufacturer, Huang Liang Technologies offers a wide range of SMA series adapters. If you would like to know more about our products, please feel free to contact us for more details.
