Wireless communications, various high frequency applications, signal transmission quality and connection stability are crucial in RF testing area. N to SMA adapters play an important role in bridging different connector interfaces in these applications, ensuring low-loss signal transmission while supporting high-frequency and high-power requirements. This article will provide an in-depth introduction to the N-Type to SMA adapter's structure and features, application scenarios, maintenance methods, purchasing guidelines, as well as frequently asked questions.

〈Extended Reading：SMA to K Connector Explained as the Key RF Component for High Frequency Technology〉

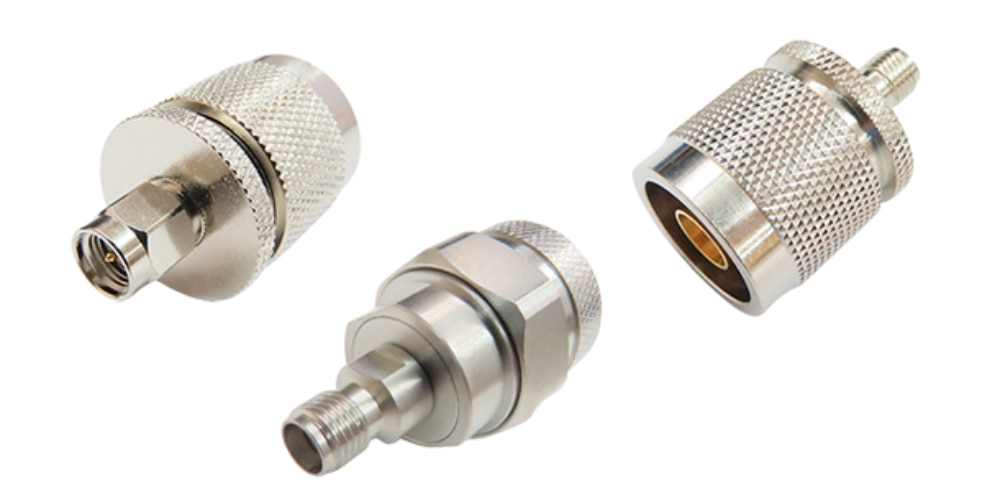

What is an N Type to SMA Adapter?

An N-Type to SMA adapter is a component used for RF signal conversion, connecting devices to components by connectors. Due to these two connectors have different sizes and structural designs, the quality of the N to SMA adapter directly affects signal transmission efficiency and overall system performance in terms of frequency matching and impedance stability. The following describes the respective characteristics of N and SMA connectors.

Features of N Connector

1. Strong Structure: Suitable for use outdoors or in harsh environments, and has good mechanical strength.

2. Frequency Range: DC-18GHz

3. High Power Handling Capability: Supports power output up to hundreds of watts.

4. Waterproof Support (IP67): Suitable for harsh environments.

5. Notes: The 50 ohm male connector and the 75 ohm female connector cannot be plugged in opposite directions. This will cause the center pin to be damaged and the connector will become unusable.

〈Product Recommendations: N Adapters〉

〈Product Recommendations: N Connector〉

〈Extended Reading：What is an N Connector and How Does It Work?〉

Features of SMA Connector

1. Small Interface: Suitable for compact design.

2. Frequency Range: DC-26.5GHz

3. Threaded locking design provides stable connection.

4. Mostly used for laboratory testing, antenna connection and module development.

〈Product Recommendations: SMA Adapters〉

〈Product Recommendations: SMA Connector〉

〈Extended Reading：High Performance Female SMA Connector: What You Need to Know!〉

〈Extended Reading：How Male SMA Connectors Drive Innovation in Global Tech?〉

Applications of N to SMA Adapter

N to SMA adapters are widely used in fields that require interface conversion. The following are common application scenarios and examples of N to SMA adapters.

〈Extended Reading：The Ultimate Guide to SMA Plug Connector Types and Specifications〉

N to SMA Adapter Application Comparison Table

N to SMA Adapter Maintenance

To extend the life of the N to SMA adapter and maintain excellent signal transmission performance, the following maintenance methods are recommended.

• Must be Clean

Use the dust-free fabric cleaning before and after use to prevent dust from entering and causing signal impedance mismatch.

• Avoid Exposure to Extreme Weather

If the N to SMA adapter you purchased is not waterproof or dustproof, please avoid direct exposure to high temperature, humidity, or rain.

• Check the Coating Condition Regularly

Check the N to SMA adapter's external plating (such as gold or nickel plating) for signs of peeling or corrosion. Plating peeling will increase signal loss.

• Avoid Forceful Insertion or Incorrect Locking

Incorrect tightening methods may cause the N to SMA adapter threads to wear or the center pin to bend. It is recommended to use a suitable torque tool for tightening.

How to Choose an N to SMA Adapter?

When choosing an N to SMA adapter, you need to consider not only basic parameters but also a comprehensive evaluation based on the application environment, frequency range, and safety standards. The following are some recommendations for choosing an N to SMA adapter.

〈Extended Reading：How to Choose the Right RP SMA Connector for High Frequency Projects?〉

Recommendation Table for N to SMA Adapters

The most trusted supplier of N to SMA Adapter – Huang Liang Technologies

As a professional RF connector manufacturer in Taiwan, Huang Liang Technologies has become a long-term partner of many global communications and test equipment manufacturers by leveraging its extensive RF design experience and strict quality control.

1. Own Production Equipment：Ensure process stability and dimensional accuracy.

2. Multi-Country Export Experience：Products are sold in North America, Europe, Japan and other countries, and have passed multiple RF test standards.

3. High Performance Specifications：Low VSWR, low insertion loss, suitable for high-end applications.

4. Complete Product Range：Provide standard, partition, waterproof and other diversified structural options to meet various project needs.

5. Fast Delivery and Customization Support：Support small-scale proofing and mass production, provide CAD drawings and 3D models.

〈Extended Reading：Bulkhead SMA Connector Buying Guide: Specs, Materials & Applications〉

FAQs about N to SMA Adapters

The following is a list of frequently asked questions and provides answers.

N to SMA Adapter FAQ

Conclusion

In RF applications, N to SMA adapters are essential for efficient signal conversion. Whether integrating test systems, designing antenna interfaces, or designing military-grade communications equipment, these high-quality adapters ensure stable performance.

As a professional RF microwave connector manufacturer, Huang Liang Technologies offers a wide range of high-quality products and technical support. We provide a comprehensive service offering everything from standard products to customized development. We also boast comprehensive RF testing equipment and a professional technical team. Please contact us to discuss your needs and let us be your trusted partner for RF connectivity solutions！
