When choosing wireless devices or designing related communication products, the coaxial connector is often not the first component to be emphasized. But it plays a key role in the overall performance. In particular, the RP SMA connector is one of the most common coaxial connectors used in wireless communication equipment. If the coaxial connector is not properly selected, it may not only cause signal degradation of the device, but also reduce the performance of the original high quality device. Therefore, choosing the right RP SMA connector is not only a matter of hardware specification, but also a matter of signal stability and communication quality. In this article, we will bring you an in-depth understanding of the importance of RP SMA connector and the key considerations when choosing products.
What is RP SMA Connector? Why is it so Important in the High Frequency Field?

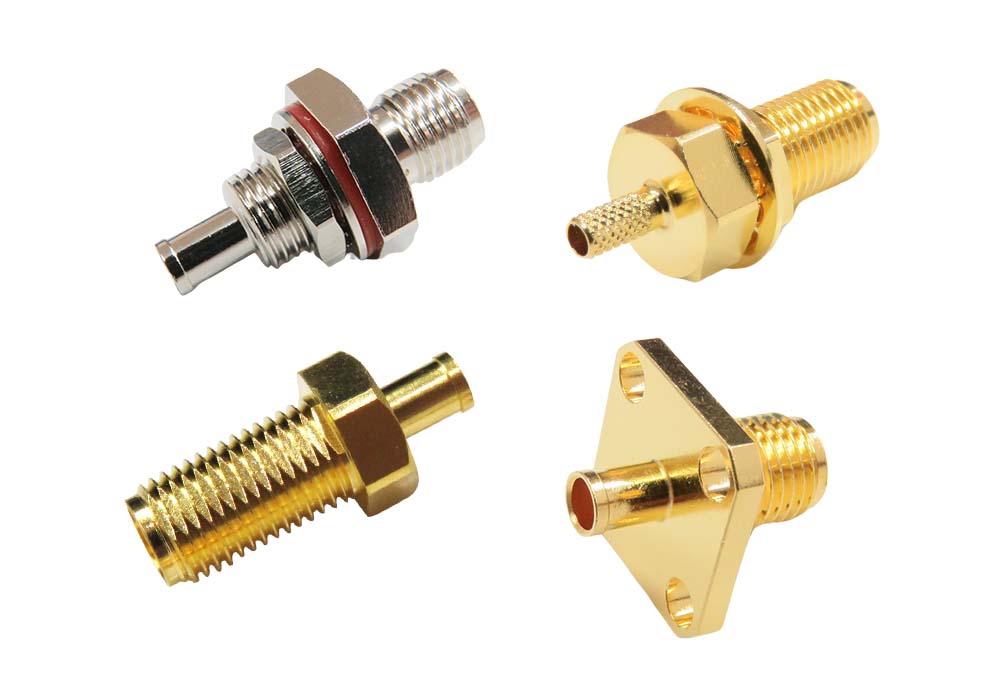

RP SMA connector is the abbreviation of Reverse Polarity SMA. The polarity of center pin for RP SMA connector is switched from male to female gender and it is different from the standard SMA connector. RP SMA connector has a threaded coupling mechanism and is mainly used in Wi-Fi antennas, wireless base stations, IoT devices, etc., especially those devices that require stable RF transmission. Importantly, the SMA connector is not compatible with the RP SMA connector.
Why is the RP SMA Connector so Important in High Frequency Area?
The RP SMA connector is an indispensable component for high frequency RF signaling applications. Whether it is Wi-Fi, wireless base station, or test equipment, choosing the right RP SMA connector can significantly affect the overall system performance, stability, and signal loss. Conversely, a poor quality or out-of-spec RP SMA connector can cause signal reflection, impedance mismatch, and even RF leakage. These problems may seem insignificant, but in practical use of an RP SMA connector, they can result in reduced transmission distance, unstable connections, or data transmission errors. Especially in commercial environments or industrial applications, the stability of the signal is often related to the overall reliability and operational efficiency of the system.
Key Points for Choosing RP SMA Connector
- Frequency Support Range: Make sure the selected connector can support the frequency range (e.g. 2.4GHz or 5GHz) in which your system operates.
- Impedance Matching: The standard RP SMA connector should have 50 ohm impedance to avoid signal reflection and loss.
- Mechanical Strength and Durability: The design and material of the connector's screw threads must be durable enough to withstand long periods of plugging and unplugging.
What is the Difference between RP SMA Connector and Normal SMA Connector?
The RP SMA connector and the SMA connector look very similar on the outside, but there are key design differences. These differences not only affect compatibility, but also relate to equipment safety, signal stability and regulatory compliance. Below you will find the key differences between the RP SMA connector and the SMA connector.
Different Design of Connector Structure: Gender Reversal is the Key
Standard SMA Connector
- Plug (Male): The center is with a prominent center pin.
- Jack (Female): There is an internal hole to cover the protruding center pin of the plug (male) side.
RP SMA Connector
- Plug (Male): It looks like a plug, but the center is an internal hole.
- Jack (Female): It looks like a jack, but the center is a prominent center pin.
The design of the RP SMA connector is called "Reverse Polarity", which is designed to prevent the RP SMA connector from directly connecting to the standard SMA connector, avoiding the need for users to replace the antenna or modify the device, and ensuring the compliance of the product for wireless communication.
Different Applications: Use Determines the Selection
- SMA Connector: Usually used in test equipment, radar modules, aerospace equipment, high frequency communication equipment, etc. These occasions require very high signal loss and are not restricted by regulations.
- RP SMA Connector: Commonly found in consumer products such as Wi-Fi routers, wireless LAN cards, IoT devices, and so on. Since regulations do not allow users to easily replace high gain antennas. The use of RP SMA connector effectively prevents unauthorized upgrades and ensures that the device complies with wireless communication regulations.
Compatibility and Points to Note for Purchase
Although the RP SMA connector and SMA connector look almost the same, they cannot be directly connected to each other due to the different polarity of the center pin inside. Forced connection will not only damage the connector, but also cause signal transmission problems. When choosing a connector, you should pay special attention to the product specifications. For example, "RP-SMA Male" and "SMA Male" actually have different center pin structures, so you should match the connector or antenna correctly according to the connector on the device side.
What High Frequency Applications does the RP SMA Connector Support?
RP SMA connector plays an important role in today's wireless communication equipment, especially for various short to medium range and high frequency applications. RP SMA connector provides a stable and reliable connection. Not only does it minimize signal loss, but it also complies with many international and local regulations. Below you will find an overview of the common application areas of RP SMA connectors and their practical use in different wireless technologies.
Wireless Networks and Home Device Applications
- Wi-Fi (2.4GHz / 5GHz): The RP SMA connector is one of the most commonly used connectors for Wi-Fi routers, wireless LAN cards, and wireless base stations, especially for devices that support external antennas. Using the RP SMA connector provides better signal stability and prevents users from replacing high gain antennas that may affect the signal range.
- Wireless Surveillance and Smart Home Appliances: Wireless cameras and smart TV boxes are often connected to the antenna via RP SMA connector to enhance the wall penetration and stability of wireless signals.
Internet of Things (IoT) and Low Power Network Applications
- Zigbee / Thread: This low-power wireless communication protocol is widely used in smart homes, industrial sensors, and environmental monitoring systems. The RP SMA connector allows the device to adjust the communication distance through interchangeable antennas, increasing flexibility.
- LoRa / LoRaWAN: In long-distance low-power communication applications, such as smart agriculture and remote water/electricity meters, LoRa devices usually use RP SMA connectors to connect high-gain antennas to extend the transmission distance while ensuring signal stability.
Advanced Communications and Professional Applications
- 5G Small Base Station / Wireless Gateway: Although 5G uses higher frequency bands (e.g., Sub-6 GHz or mmWave), many 5G gateways and small base stations for entry-level or localized applications are still paired with an RP SMA connector. Especially in the development stage or modular design, so that the antenna can be replaced for testing and optimization.
- Drones / Remote Controls: Drones and Remote Controls (RC) often use RP SMA connector to connect the antenna to improve flight stability and control distance. Especially in video transmission modules, good connection quality helps to minimize delay and interference.
How to Choose the Right RP SMA Connector?
When designing or purchasing a wireless device, many people focus on the antenna, module, or chip, but overlook the small but critical RP SMA connector. Choosing the wrong RP SMA connector not only affects the signal quality, but it can also result in the wireless device not functioning correctly, having an unstable connection, or even damaging the connector. To avoid such problems, it is important to choose the right RP SMA connector. Below is a brief overview of the key aspects that you should pay attention to when choosing the right RP SMA connector.
Considerations for Selecting the RP SMA Connector
- Whether the Frequency Range Meets the Usage Requirement: Check whether the frequency supported by RP SMA connector covers your application, such as 2.4GHz (Wi-Fi, Zigbee), 5.8GHz (5G, video transmission), etc. If the frequency range is too low, it will result in high frequency signal degradation. Too low a frequency tolerance will result in high-frequency signal degradation.
- Material Selection Affects the Durability and Conductivity: High-quality RP SMA Connector is usually plated with gold plating, nickel plating, material selection of brass, beryllium copper, etc., because of good resistance to oxidation and conductivity, and has a higher mechanical strength. If inferior metal materials are used, they are prone to deformation and wear and tear.
- Male and Female Connectors should be Matched with the Equipment: The appearance of the "male" and "female" RP SMA connector can be easily confused, and the correct corresponding connector should be selected according to the connector specification of the equipment end (e.g., the router is mostly the female connector of the RP SMA connector).
- The Lower the VSWR, the better: A quality RP SMA connector should have a VSWR value of less than 1.3:1, which represents stable signal transmission with minimal loss.
- Connector Life and Environmental Tolerance: Consider the RP SMA connector's insertion and removal life (it is recommended to choose a design that supports at least 500 insertions and removals), as well as whether or not it is waterproof, dustproof, etc., in order to cope with outdoor or industrial environments.
Potential Problems with Choosing the Wrong RP SMA Connector
- Signal Instability or Serious Attenuation: If the RP SMA connector does not match the impedance of the system, it will cause signal reflection and loss, resulting in unstable connection quality and even affecting the communication distance.
- Unable to Dock or Incorrectly Connected: RP SMA connector has "male and female" and "positive and negative polarity", if incorrectly connected, it may not be able to be connected at all or may cause damage to the RP SMA connector.
- Reduced Product Life and Increased Maintenance Costs: RP SMA connector with poor material or improper structural design is prone to loosening, oxidization, and deformation, which increases the frequency of maintenance and replacement in the long run.
Practical Tips: Avoid These Common Mistakes
Before purchasing, be sure to check the specification drawings or actual photos of the product to avoid misjudging the RP SMA connector's male and female connectors and polarity. If you are replacing an existing connector, it is recommended that you check the original part number or ask an engineer to help you identify the connector. If there is an extension cable between the connector and the antenna, be sure the connectors are the right type to avoid signal loss.
How to Find a Reliable Supplier of RP SMA Connector?
When purchasing RP SMA connectors, in addition to selecting the right product specifications, finding a reliable supplier is also key to ensuring quality and a long-term relationship. Especially in industrial applications, RP SMA connector not only affects the communication performance, but also involves product stability, customer trust, and subsequent maintenance costs. Therefore, how to evaluate whether a supplier is reliable or not? Below are the key points of choosing a supplier, as well as introducing the connector brand – Huang Liang Technologies, its features and advantages in the industry.
Check Whether the Product has International Certification and Quality Standards
A reliable supplier should have international quality and environmental certificates such as ISO 9001, RoHS, REACH, etc. To prove that its production process meets international standards. We have obtained a number of international certificates and uses its own factory to control the entire production process, from raw material selection, manufacturing to quality control testing, to ensure that the RP SMA connector meets the high quality standards.
Evaluate the Price, Performance Ratio and Flexibility of the Supplier
Price is important, but if you only pursue a low price, you may get a high defect rate, unstable delivery time or poor after-sales service. Therefore, it is recommended to choose a company that has a good balance between "quality" and "price". With independent R&D and tooling design capabilities in Taiwan, Huang Liang Technologies can provide customized connector design and mass production solutions according to customer needs. We can provide customers with RP SMA connectors for various needs, and at the same time, provide competitive pricing, and is the designated long-term partner of many communication equipment.
Confirm Supply Chain Stability and Shipment Efficiency
A quality supplier should be able to cope with high volume demand, urgent deliveries and long-term supply contracts, and have an efficient logistics and inventory management system. The stability of the supply chain has a direct impact on your production scheduling and delivery risk. With a local factory in Taiwan and a comprehensive inventory management system, we are able to respond to customers' needs in a timely manner with fast and flexible shipments.
Refer to Market Reputation and Customer Feedback
Customer reviews and industry reputation are important criteria for evaluating suppliers. You can learn more about the service attitude, after-sales support, and cooperation experience of suppliers through online reviews, B2B platforms, or industry recommendations. Huang Liang Technologies has a good reputation in Taiwan and overseas markets, and has accumulated many years of practical experience in industrial communication, wireless networking and smart applications. We also provide stable technical support and technical consulting services.
Conclusion
RP SMA connector has become a key component for modern wireless communication, test equipment and 5G technology due to its miniaturization, high frequency performance, reliability and durability, and wide compatibility. With our own R&D capability & CST electrical simulation software, we are able to meet the special application requirements for RP SMA connector customization. Huang Liang Technologies is a professional RF microwave connector manufacturer, providing a wide range of high quality products and technical support. If you have further requirements, please feel free to
contact us for more information.
