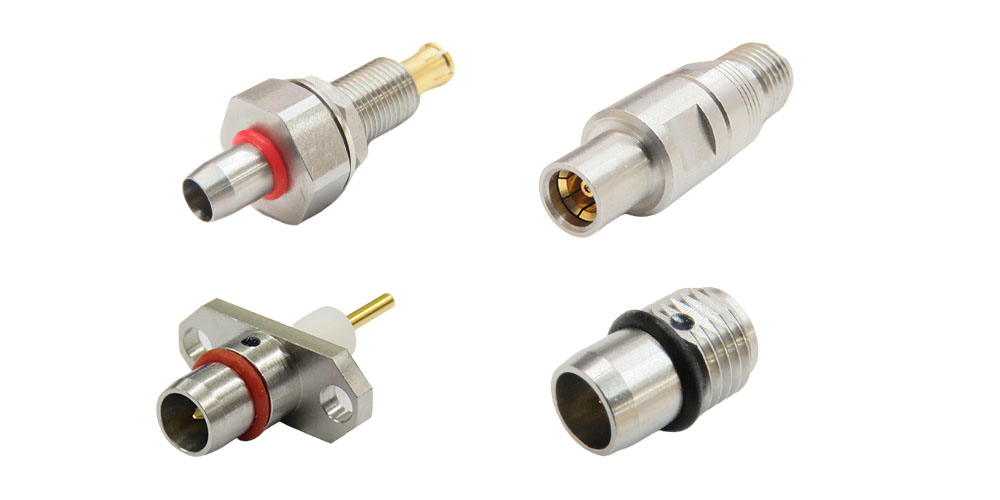

Blind Mate Connectors

Coaxial Connectors are one of the key components in high-frequency communication and RF technology applications. They are in charge of transmitting signals and ensuring the stability of electrical performance. The internal circuit modules of equipment between modules in 5G communication equipment modules, radar equipment modules and other terminal equipment need to carry out multi-channel simultaneous insertion and use, in order to quickly install and remove. At the moment blind mate connectors is the best choice for use. The current blind mate connectors’ types are SMP, SSMP (SMPM), BMA, BMAM and other series. Due to the limited space of the module structure, these blind mate connectors will satisfy the space and miniaturization needs. However, because of the blind mate connectors of different series are designed by different interface, the selection of the appropriate blind mate connectors is the best choice for use as well as will improve the connection efficiency.

<Extended reading: Mastering 2.4mm Connectors and Adapters: Applications, Specifications, and Selection Guide>


What is an RF Blind mate connector?

Blind mate connectors as a special type of connectors, are widely used in many industrial and commercial applications due to their unique features of automatic alignment and fast connection. Blind mate connectors do not require precise manual alignment. The user simply inserts the connector into the corresponding port and the connection between modules is automatically made. These features make them ideal for applications where space is at a premium or they are difficult to shift, and can greatly improve connection efficiency and reduce handling time.

Blind mate connectors are designed to be used without visual assistance or precise alignment. They allow connections to be made automatically where direct vision or manual alignment is not possible. Blind mate connectors are designed to be particularly suitable for applications where space is limited or the connection is difficult to reach, such as in aerospace, military and communications equipment.

<Extended reading: Get to Know Multi-Functional of BMAM RF Connectors>


The key benefits of blind mate connectors including

Quick Connect and Disconnect

No manual adjustment or locking required. It is suitable for frequent plugging and unplugging or space-constrained environments.


High Frequency Support

Many Blind mate connectors support frequencies up to tens of GHz for high frequency communications and RF applications.


High Reliability

The design is reinforced to withstand repeated plugging and unplugging, and maintains good signal stability and connection reliability.


High-Density Applications

Blind mate connectors are usually designed as miniaturized products for high-density applications such as satellite communication systems, aviation airborne electronic equipment, and so on.

<Extended reading: Understanding Hermetic Sealing Technology and Hermetic Connectors in RF Applications>


There are several factors to consider when choosing the right blind mate connectors

Frequency Range

Select the supported frequency range according to the application requirements. Such as SMP support up to 40 GHz, which is suitable for high-frequency applications. The frequencies are listed in descending order as SSMP (65 GHz) > SMP (40 GHz) > BMAM (28 GHz) > BMA (22 GHz).


Plugging and Un-plugging Frequency

The plugging and unplugging durability of the connector needs to be considered to ensure long-term use without compromising performance.


Size and Density

Select the appropriate size according to the space and design density requirements, e.g. SSMP is more suitable for high-density applications. The external dimensions are ranked from largest to smallest as BMA>BMAM>SMP>SSMP.


Installation Environment

For applications in harsh environments such as military or aerospace would be more suitable to choose a durable type such as BMA connector.


Applications of Blind Mate Connectors

Blind mating connectors are suitable for a wide range of applications. They are particularly suited to environments where fast connection and precise alignment are required. The following are some typical applications

<Extended reading: SSMP Connectors: Specifications, Advantages, and Types>


Aerospace

Inside the cabin or in satellite equipment, blind mate connectors can save a lot of time during maintenance and installation where space is tight and manual operation is difficult.


Military Communications

Military applications require a high degree of reliability and durability. The high vibration resistance and stability of blind connectors make them ideal for use in field operations and high vibration environments.


Radar and Navigation Systems

In these high-precision applications, blind mate connectors ensure stable signal transmission and low insertion loss to meet the system's demand for high-frequency signal transmission.


Wireless Base Stations

Wireless base station equipment requires multiple components to be connected in a high-density, confined space, and the self-aligning feature of blind mate connector makes it ideal for this type of application.

<Extended reading: Explore BMA Connectors and Applications in Microwave Technology>


There are various types of blind mate connectors depending on the requirements of the application

The following are some common types of connectors:

BMA

BMA connectors were one of the first connectors designed for blind mate applications and capable of handling RF applications from high frequencies up to 22 GHz. BMA has excellent electrical performance and is mainly used in high frequency systems that require stable signal transmission, such as radar and satellite communications.

We have a wide range of BMA products, please see below to select the right product or contact us for customized products.

<Products Recommendation : BMA product >


BMAM

The BMAM is a miniaturized version of BMA, designed for space-constrained applications where high performance is required. Its design features include high-frequency operation (up to 28 GHz) and auto-alignment capabilities for a wide range of applications in modern communications equipment as well as high-frequency transmission systems.

Please contact us to select the right BMAM product, or ask for customized products according to your needs.

<Products Recommendation : BMAM product >


SMP

SMP is a blind mate connector with fast connection and high frequency performance up to 40 GHz. SMP connectors are not only suitable for blind mate applications, but are also widely used in military and avionics equipment due to their small size and high density.

Huang Liang Technologies provides a wide range of SMP blind mate connectors. Please see below to select the right product or contact us for customized products.

<Products Recommendation : SMP product >

SSMP

SSMP is an advanced version of SMP that supports frequency applications up to 65 GHz with smaller size and higher connection density. SSMP is commonly used in applications that require extremely high accuracy and stability, such as satellites, aerospace and advanced communication systems. Huang Liang Technologies provides a wide range of SSMP (SMPM) blind mate connectors. Please see below to select the right product or contact us for customized products.

<Products Recommendation : SSMP product >

The Common Series, Materials, and Technical Specifications of Application Scenarios

<Extended reading: SSMP Adapters: Key Functions, Types, Advantages, and Applications>


Conclusion

Blind mate connectors are ideal for modern high-frequency applications and automation systems. They are widely used in communications, military, aerospace, and other fields due to their automatic mating, blind mate, high-frequency support, and durability. When selecting the right blind mate connectors, frequency range, plug-in durability and space constraints should be considered for specific applications. The application of these blind mate connectors not only improves system efficiency, but also reduces operational errors, thus greatly enhancing productivity and performance. If you are looking for a suitable blind mate connectors or would like to know more about the technical details, please contact us and we will provide professional advice to help you find the best solution.
