SMPM to SMPM Board to Board Solution

SMPM (SubMiniature version M) connectors are ultra-miniature RF connectors designed for high-frequency applications up to 65 GHz. SMPM connectors are often used in board-to-board connections where space is limited and high-frequency transmission is required. A board-to-board solution using SMPM connectors typically involves mounting the connectors directly on the circuit boards and mating them together to establish the RF connection. SMPM connectors usually feature a push-on coupling mechanism, which allows for quick and easy connection without the need for threading.

Overall, SMPM connectors offer a compact and high-performance solution for board-to-board connections in high-frequency applications, making them ideal for use in telecommunications, aerospace, and military systems.

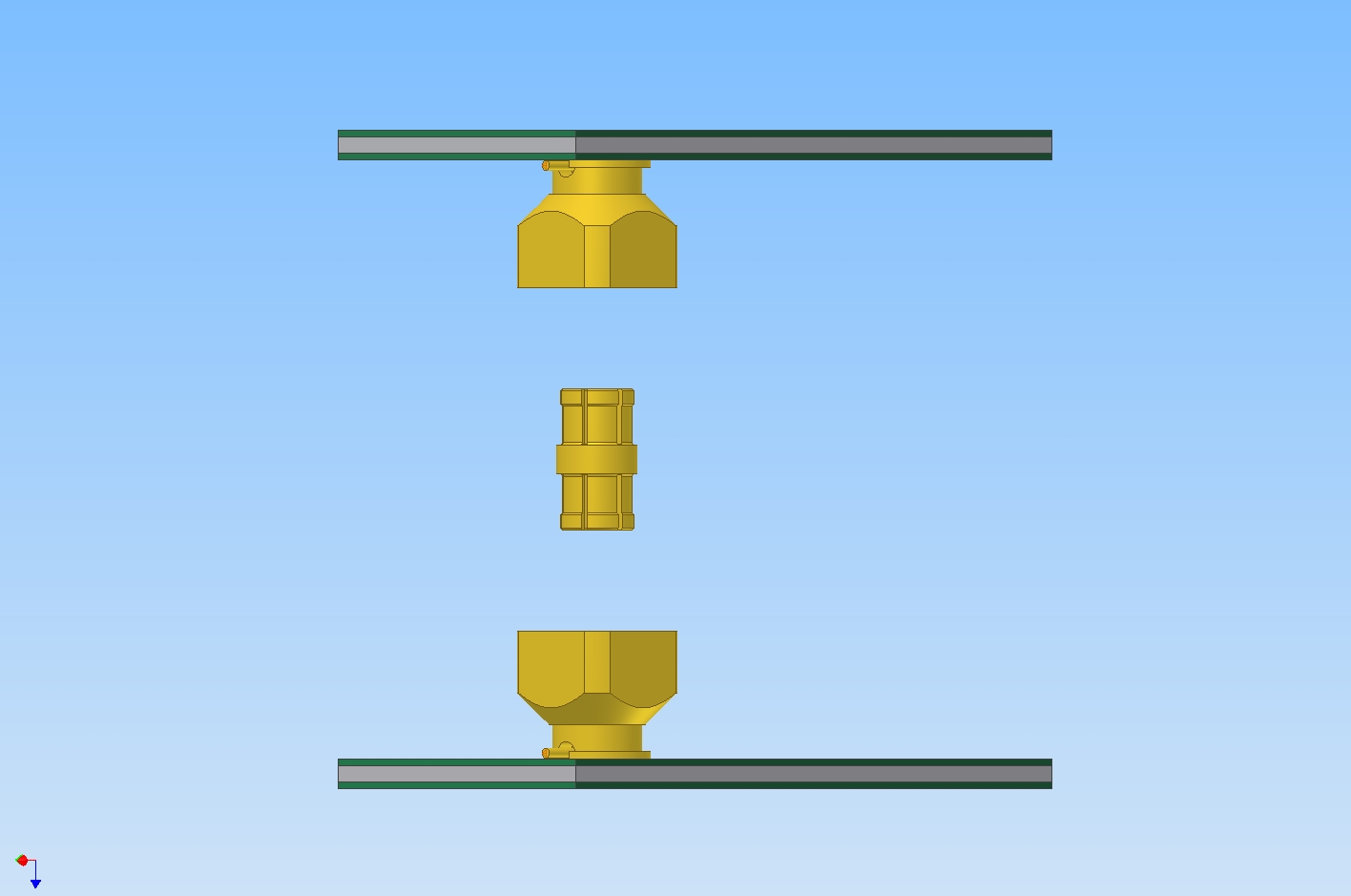

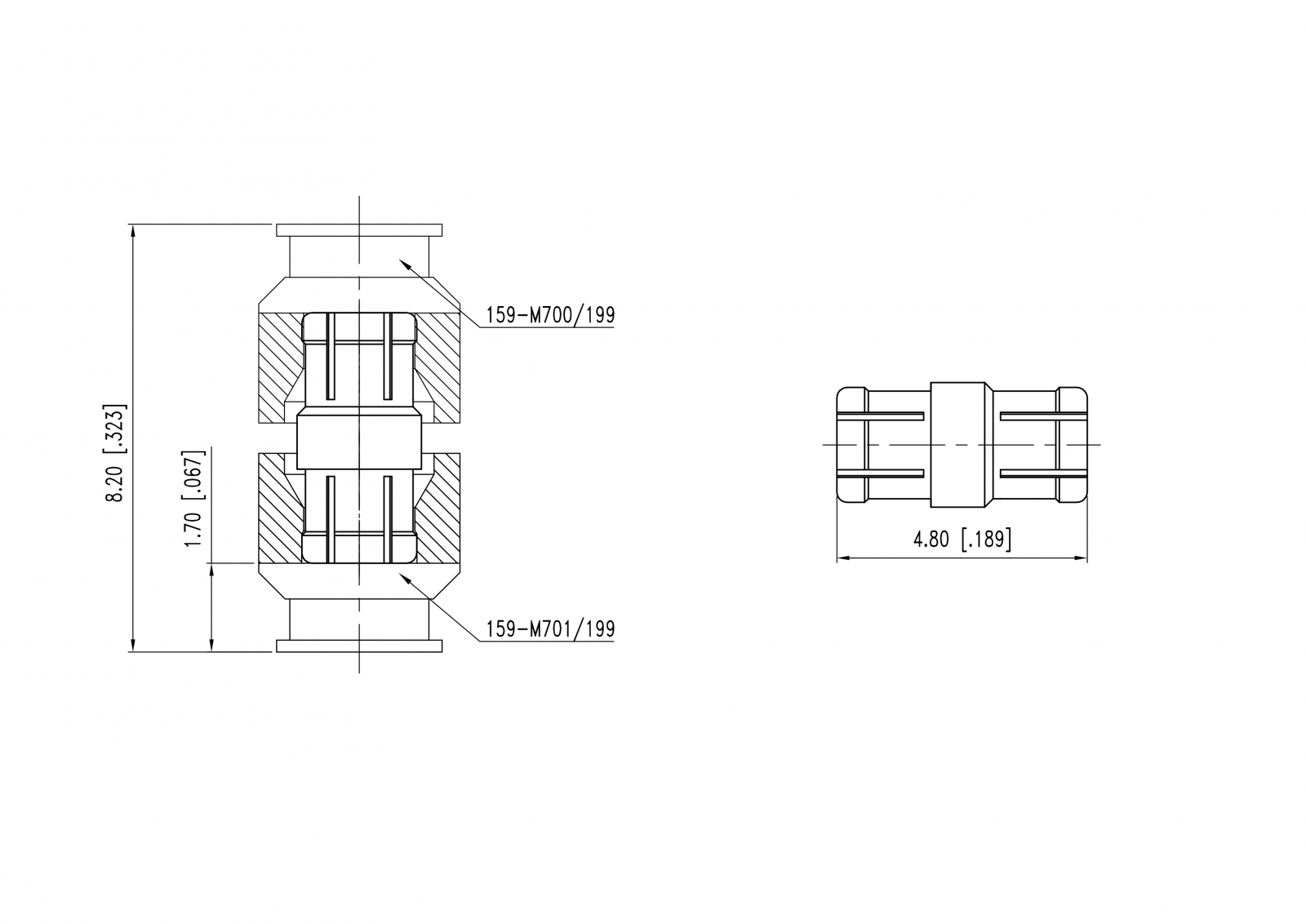

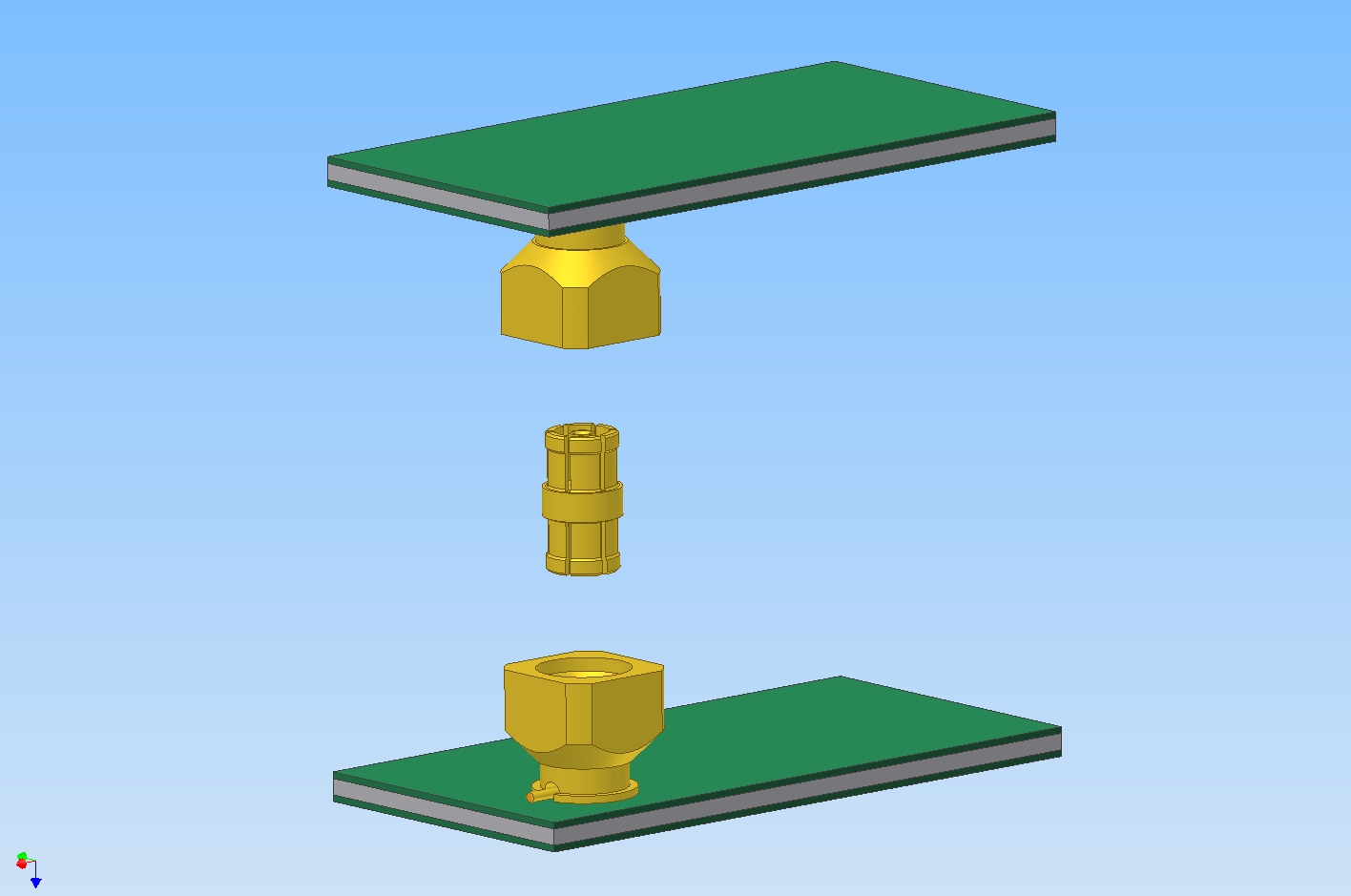

Huang Liang Technologies provides various SMPM to SMPM board to board solutions for our customers to fulfill different demands. The minimum board to board distance we could make so far would be 7.6mm. The best-selling solution we have such as the combination of 159-A01K.111(SF162), 159-M700.199(SF162), and 159-M701.199(SF162) could achieve 8.2mm board to board distance. This series are including SMPM connectors and bullet adapter for mating purpose. For further discussion or different needs, please feel free to contact us.
