Introduction

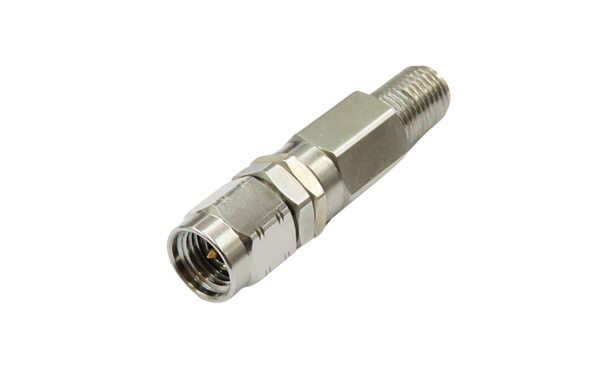

Huang Liang Technologies offer the 2.92mm phase shifter which is able to adjust the electrical length between components. A precision mechanical movement provides continuously varying phase shifts, while maintaining 50 Ohm impedance over the entire frequency range. Mostly, if the phase is set properly as needed, the unit will be locked usually, and remain in the same position.

Features

One of the advantage for the 2.92mm phase shifter is about its simple mechanical phase adjustment. It is a precise as well as usability of phase adjustment for microwave instrumentation. Our adjustable phase shifter incorporate a threaded interconnection of variable length. Turning a phase adjustment nut creates small-incremental changes in cable length and phase. The electrical performance is up to the maximum of 120 degrees at 40 GHz.

Application

Phase shifters are widely used in microwave field, especially in missile simulation systems. Its accuracy and delay properties are directly related to the simulation results. It is also the core component in phased array radar, satellite communication facility, mobile equipment, etc. Its operating frequency and insertion loss right affect the anti-jamming ability and sensitivity of these devices, also the weight, volume and cost of the system.


Product Recommended: 2.92mm Phase Shifter(729-X501/188)

Click below to watch instructional video on YouTube!
